EMG prosthetic hand
A 3D-printed prosthetic hand controlled by forearm EMG. It recognizes gestures with 97% accuracy across users in 250 ms, for about $150.
2025–26CompleteEMGMLHardware
Started in 2024–25 and continued through 2025–26. The team presented it at the California Neurotechnology Conference.
Results

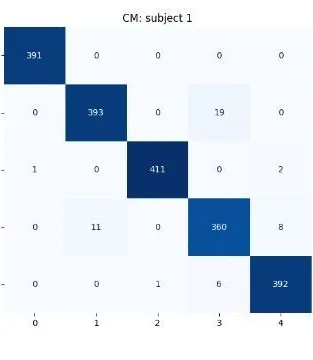

- 97% gesture accuracy across users, with predictions in 250 ms
- Fluid finger movement from spring-tensioned, tendon-driven fingers
- Built for about $150, roughly 50× cheaper than a typical prosthetic arm
- A GUI that handles data collection, training and live control in one place

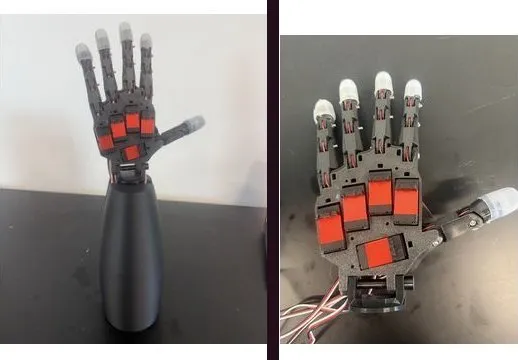

Hardware
- Open-source finger, palm and forearm parts, reinforced and refined in Fusion
- Fingers pulled by strings wrapped around servo pulleys, with springs for return
- Silicone fingertips for better grip
- A redesigned forearm that houses the electronics and a motor for wrist rotation
Software
- A MindRove armband reads sEMG from the forearm.
- Signals go through a 60 Hz notch filter and a 10–200 Hz bandpass, then are split into overlapping, normalized windows.
- A BiLSTM classifies the gesture. The team also tested CNN-LSTM and CNN-GRU models.
- The GUI, built with Tkinter and the MindRove SDK, sends servo commands to an Arduino over Wi-Fi.
Training data came from the UCI gestures dataset, a Zenodo EMG dataset and the team’s own MindRove recordings of five gestures: relax, fist, rock, peace and shaka.
Next steps
- A second wrist axis with bearings, and side-to-side finger movement
- Transformer and CNN-RNN models for more gestures
- Proportional control for finer movement
- Transfer learning and model quantization to cut calibration time and latency
